T-bar Introduction

Scope of business > Ceiling Tiles Suspension

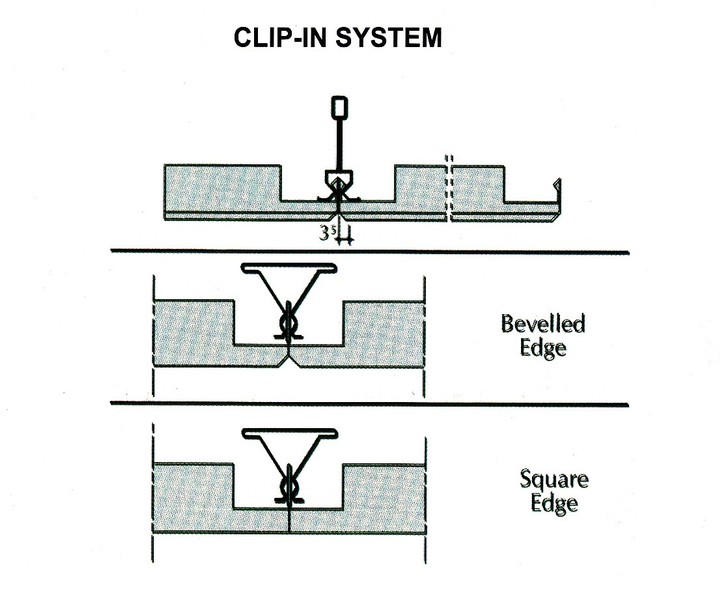

Suspension Systems:

a pre-engineered ,pre-decorated exposed tee bar fixing system for suspended ceiling .It comprises of self-interlocking

main tees ,cross tees and wall angles specially designed to maintain structural stability ,whilst providing aesthetic

beauty of the exposed ceiling system.profiles are manufactured from high quality hot-dip galvanized steel to JIS

G3302 standard wih zinc coating of not less than100g/m2 , the capping material has a 5-8 micron oven-baked expoy

primer on both sides, the visble side is finished with an additional20-25 microns finish with a light reflectance of

between 12% and are manufactured and tested in accordance to ASTM C-635, with mid-span

deflection not exceeding 1/360 of the span length.
